Description

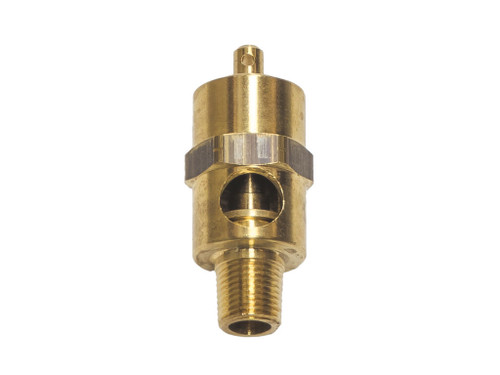

The Conrader SRV 250 is a soft seat safety relief valve in 1/8" BSPT, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 150 psi (1034 kPa / 10.3 bar), rated flow of 132 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Compact body footprint for mounting on small receivers and pressure vessels
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Brass body construction for corrosion resistance in compressed-air and gas service
- Stainless-steel spring for consistent set-pressure across the service interval
- Soft seat design provides leak-tight sealing and reliable reseating after relief
Applications
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
