Description

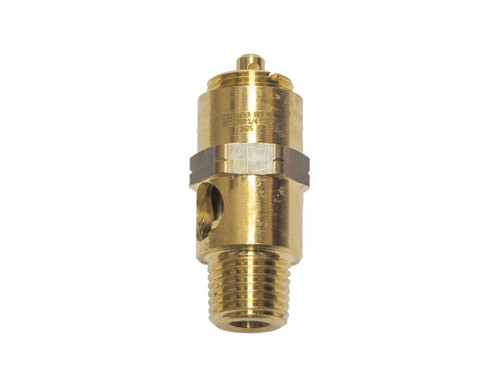

Conrader soft seat safety relief valves in 1" NPT sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1" NPT configuration. Factory-set to 150 psi (1034 kPa / 10.3 bar), rated flow of 1.281 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Stainless-steel spring for consistent set-pressure across the service interval
- Compact body footprint for mounting on small receivers and pressure vessels
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Factory set, tested and tagged to the marked pressure setting
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
Applications
- Compressed-air distribution networks and pressure regulators
- Industrial nitrogen, CO2 and inert-gas systems
- Pressure vessels containing non-hazardous compressed gases
- Intercoolers and aftercoolers on reciprocating and rotary compressors
- Bypass relief on regulated air and gas circuits
