Description

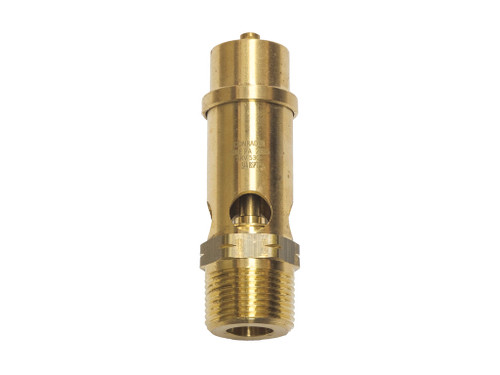

The Conrader SRV 530 is a soft seat safety relief valve in 3/4" BSPP, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 140 psi (965 kPa / 9.7 bar), rated flow of 565 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Suitable for compressed air, inert gas and non-aggressive service media
- Soft seat design provides leak-tight sealing and reliable reseating after relief
- Stainless-steel spring for consistent set-pressure across the service interval
Applications
- General industrial and workshop air systems
- Air compressor receivers and air-line pressure vessels
- Reciprocating and rotary compressor installations
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pneumatic equipment
