Description

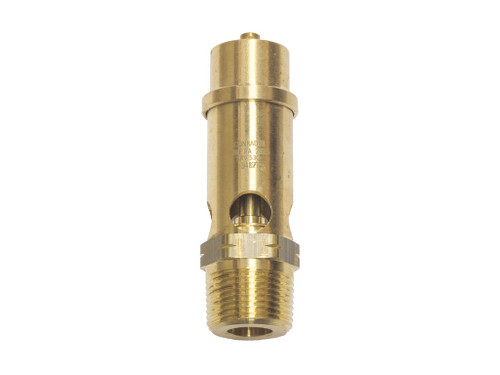

Conrader soft seat safety relief valves in 3/4" NPT sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 3/4" NPT configuration. Factory-set to 140 psi (965 kPa / 9.7 bar), rated flow of 565 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Brass body construction for corrosion resistance in compressed-air and gas service
- Factory set, tested and tagged to the marked pressure setting
- Suitable for compressed air, inert gas and non-aggressive service media
- Stainless-steel spring for consistent set-pressure across the service interval
Applications
- Intercoolers and aftercoolers on reciprocating and rotary compressors
- Air compressor receivers and air-line pressure vessels
- Pneumatic equipment, air tools and workshop installations
- Industrial nitrogen, CO2 and inert-gas systems
- Bypass relief on regulated air and gas circuits
