Description

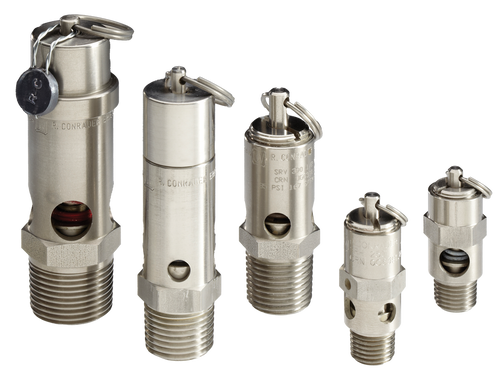

Conrader soft seat safety relief valves in 1" BSP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1" BSP configuration. Factory-set to 100 psi (689 kPa / 6.9 bar), rated flow of 889 scfm, with a stainless steel seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Stainless-steel spring for consistent set-pressure across the service interval
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Factory set, tested and tagged to the marked pressure setting
- Compact body footprint for mounting on small receivers and pressure vessels
- Soft seat design provides leak-tight sealing and reliable reseating after relief
Applications
- Compressed-air distribution networks and pressure regulators
- Pneumatic equipment, air tools and workshop installations
- Industrial nitrogen, CO2 and inert-gas systems
- Bypass relief on regulated air and gas circuits
- Intercoolers and aftercoolers on reciprocating and rotary compressors
