Description

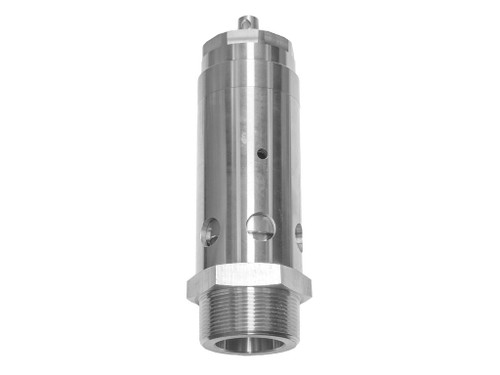

Conrader soft seat safety relief valves in 1-1/2" BSPP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1-1/2" BSPP configuration. Factory-set to 145 psi (1000 kPa / 10.0 bar), rated flow of 2459 scfm, with a stainless steel seat, AS-coded for Australian-Standards pressure-vessel service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Soft seat design provides leak-tight sealing and reliable reseating after relief
- Compact body footprint for mounting on small receivers and pressure vessels
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Brass body construction for corrosion resistance in compressed-air and gas service
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
Applications
- Bypass relief on regulated air and gas circuits
- Air compressor receivers and air-line pressure vessels
- Compressed-air distribution networks and pressure regulators
- Pneumatic equipment, air tools and workshop installations
- Pressure vessels containing non-hazardous compressed gases
