Description

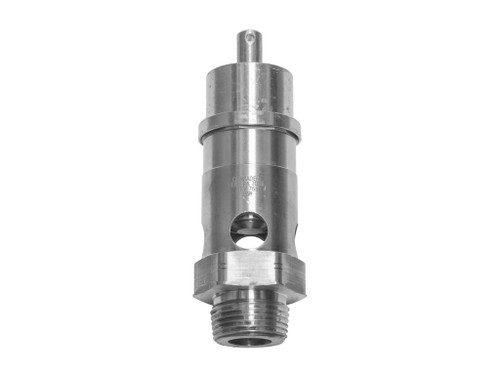

Conrader soft seat safety relief valves in 1-1/4" BSP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1-1/4" BSP configuration. Factory-set to 145 psi (1000 kPa / 10.0 bar), rated flow of 1242 scfm, with a stainless steel seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Brass body construction for corrosion resistance in compressed-air and gas service
- Factory set, tested and tagged to the marked pressure setting
- Suitable for compressed air, inert gas and non-aggressive service media
- Stainless-steel spring for consistent set-pressure across the service interval
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
Applications
- Pressure vessels containing non-hazardous compressed gases
- Air compressor receivers and air-line pressure vessels
- Pneumatic equipment, air tools and workshop installations
- Industrial nitrogen, CO2 and inert-gas systems
- Compressed-air distribution networks and pressure regulators
