Description

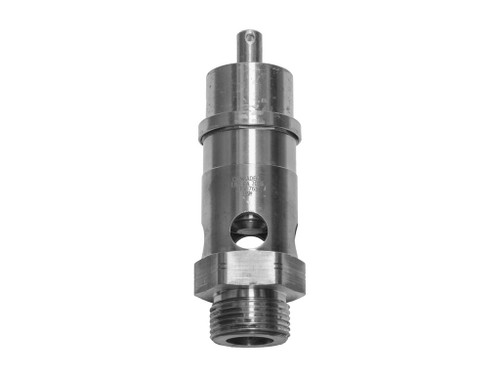

The Conrader SRV is a soft seat safety relief valve in 1" BSPP, supplied by Ultramax Systems for overpressure protection on compressed-air receivers, pressure vessels and gas installations. Factory-set to 200 psi (1379 kPa / 13.8 bar), rated flow of 1675 scfm, with a stainless steel seat, ASME-coded for pressure-vessel and receiver service. Stocked in Australia by Ultramax Systems, with batch certificates and recertification available on request.
Features
- Stainless-steel spring for consistent set-pressure across the service interval
- Suitable for compressed air, inert gas and non-aggressive service media
- Brass body construction for corrosion resistance in compressed-air and gas service
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
Applications
- Pneumatic equipment, air tools and workshop installations
- Pressure vessels containing non-hazardous compressed gases
- Bypass relief on regulated air and gas circuits
- Compressed-air distribution networks and pressure regulators
- Industrial nitrogen, CO2 and inert-gas systems
