Description

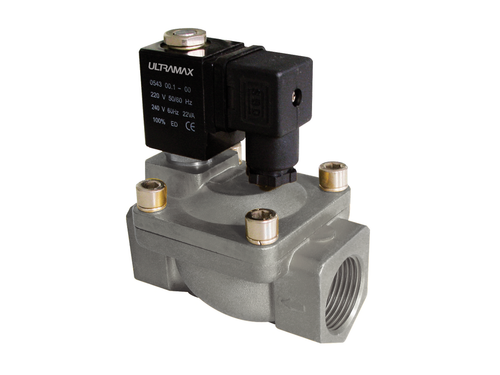

The Servo Assisted Diaphragm Valve with a stainless steel body is a critical component designed for precise control in various industrial applications. Operating as a normally closed valve, it effectively isolates flow, regulates pressure, and ensures the safe direction of media within systems. With a media temperature range of -10 to 80 degrees Celsius and compatibility with both AC and DC pressure settings from 0.3 to 10 bar, this valve is ideal for use in manufacturing, mining, water treatment, and compressed air systems. Its robust construction offers exceptional durability and corrosion resistance, promoting reliable operation and leak prevention, thereby enhancing system safety and operational efficiency in process plants and pipelines.
Features
- Constructed from high-grade stainless steel for enhanced durability and corrosion resistance.
- 3/8" size with a 10mm orifice, optimising flow rates for various applications.
- Operates effectively within a media temperature range of -10 to 80 degrees Celsius.
- Designed for normally closed (N.C.) function, ensuring safety and reliability in operation.
- Compatible with both AC and DC power supplies, operating at 24V for versatile applications.
- Pressure rating of 0.3-10 Bar for both air and fluid, accommodating a wide range of media.
- Servo-assisted mechanism for precise control and quick response times in fluid management.
- Compact design facilitates easy installation in confined spaces without compromising performance.
Applications
- Used in fluid handling systems for precise control of liquid flow in chemical processing plants.
- Ideal for compressed air applications, ensuring reliable operation in pneumatic systems.
- Employed in water distribution networks to manage flow and pressure effectively.
- Utilised in gas pipelines for safe and efficient regulation of gas flow under varying pressures.
- Commonly found in steam systems, providing reliable isolation and control of steam flow.
- Applied in process control environments to maintain consistent flow rates in manufacturing processes.
- Serves as an equipment isolation valve, ensuring safety during maintenance and repairs.
- Effective in HVAC systems for controlling air flow and maintaining desired temperature levels.
