Description

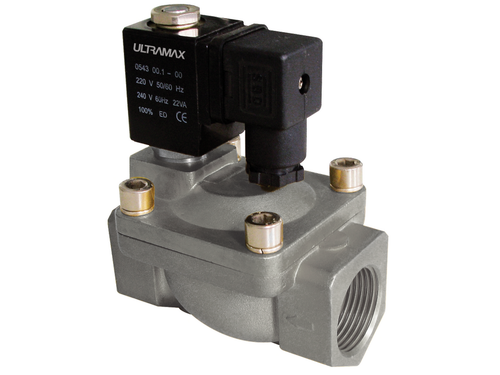

The Servo Assisted Diaphragm Valve with a stainless steel body is a critical component designed for precise control in various industrial applications. Operating at a size of 3/4" with a 20 orifice, this normally closed valve effectively isolates flow, regulates pressure, and ensures the safe direction of media within systems. It is suitable for use in environments with media temperatures ranging from -10 to 80 degrees Celsius and can handle pressures up to 10 bar for both AC and DC applications. Commonly found in manufacturing, mining, water treatment, and compressed air systems, this valve offers reliable operation, leak prevention, and exceptional durability, making it an essential choice for enhancing system safety and operational efficiency in process plants and pipelines.
Features
- Constructed from high-quality stainless steel for enhanced durability and corrosion resistance.
- Features a 3/4" size with a 20mm orifice for optimal flow control.
- Operates effectively within a media temperature range of -10 to 80 degrees Celsius.
- Designed as a normally closed (N.C.) valve, ensuring safety and reliability in operation.
- Compatible with both AC and DC applications, supporting a pressure range of 0-10 bar.
- Utilises a servo-assisted mechanism for precise control and responsiveness.
- Powered by a 24V AC supply, ensuring efficient energy consumption.
- Ideal for various industrial applications requiring reliable fluid and air management.
Applications
- Used in fluid handling systems for precise control of liquid flow in chemical processing plants.
- Ideal for compressed air applications, ensuring reliable operation in pneumatic systems.
- Employed in water distribution networks to manage flow and prevent backflow in pipelines.
- Utilised in gas pipelines for safe and efficient isolation of gas flow during maintenance.
- Applied in steam systems to regulate steam flow and maintain pressure stability.
- Incorporated in process control systems for automated control of fluid dynamics in manufacturing.
- Serves as an equipment isolation valve in various industrial machinery to ensure safety during repairs.
- Effective in HVAC systems for controlling the flow of heating and cooling fluids in commercial buildings.
