Description

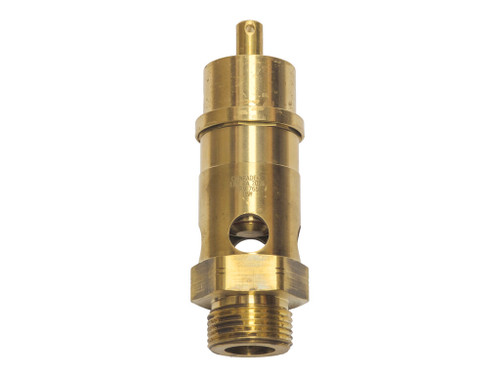

Conrader soft seat safety relief valves in 1" NPT sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1" NPT configuration. Rated flow of 304 scfm, with an astm b16 brass seat, ASME-coded for pressure-vessel and receiver service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Stainless-steel spring for consistent set-pressure across the service interval
- Soft seat design provides leak-tight sealing and reliable reseating after relief
- Compact body footprint for mounting on small receivers and pressure vessels
- Brass body construction for corrosion resistance in compressed-air and gas service
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
Applications
- Compressed-air distribution networks and pressure regulators
- Bypass relief on regulated air and gas circuits
- Industrial nitrogen, CO2 and inert-gas systems
- Air compressor receivers and air-line pressure vessels
- Pneumatic equipment, air tools and workshop installations
