Description

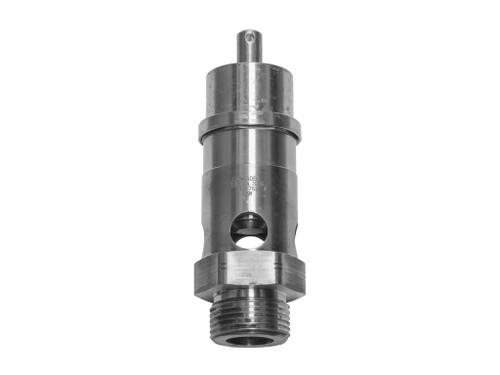

Conrader soft seat safety relief valves in 1-1/2" BSPP sit on compressor receivers and pressure vessels as the final safety stage against over-pressure events. This SKU is the 1-1/2" BSPP configuration. Factory-set to 200 psi (1379 kPa / 13.8 bar), rated flow of 1287 scfm, with a stainless steel seat, AS-coded for Australian-Standards pressure-vessel service. Australian-stocked, with batch certificates available on request and recertification handled in-house by Ultramax Systems.
Features
- Threaded body in standard BSP, BSPP and NPT configurations for direct fit on receivers
- Stainless-steel spring for consistent set-pressure across the service interval
- Suitable for compressed air, inert gas and non-aggressive service media
- Seal options for elevated-temperature service (silicon to 120°C, Viton to 230°C)
- Brass body construction for corrosion resistance in compressed-air and gas service
Applications
- Bypass relief on regulated air and gas circuits
- Pressure vessels containing non-hazardous compressed gases
- Compressed-air distribution networks and pressure regulators
- Industrial nitrogen, CO2 and inert-gas systems
- Intercoolers and aftercoolers on reciprocating and rotary compressors
